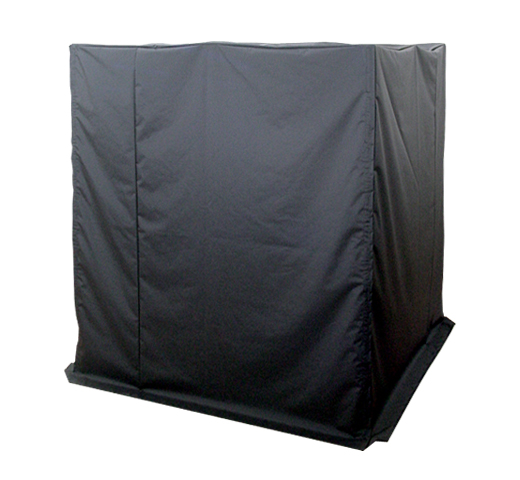

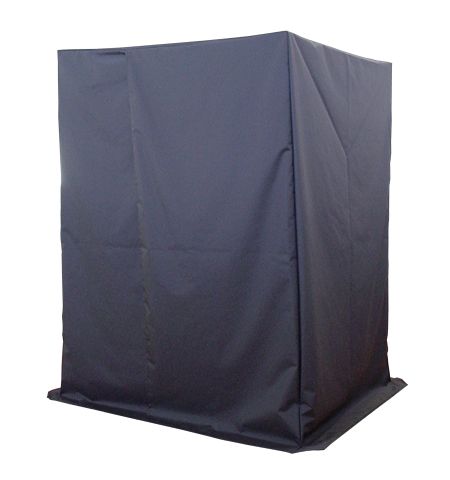

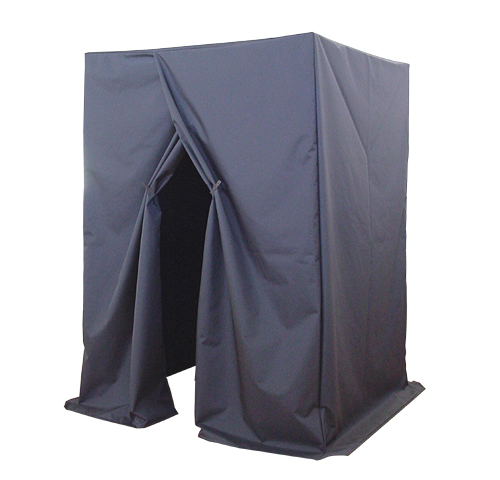

Folding Darkroom
Folding Darkroom (B-LP)
Only 5 minutes required to set up a folding darkroom!!
A folding darkroom successfully cuts down the required setting-up time.
It takes only 5 minutes.
To assemble a darkroom, it requires only 3 steps: unfold the frame, cover it with a black-out curtain, and finally extend the poles. No tool is necessary.
It is useful not only for an optical measurement and shielding the laser light, but also using as a simple display booth.
How to assemble a folding darkroom
 |
 |
 |
| Keep all four poles of the frame stable and gradually stretch each of them. (Required time: One minute) | Cover the frame with blackout curtain. (Required time: 2 minutes) |

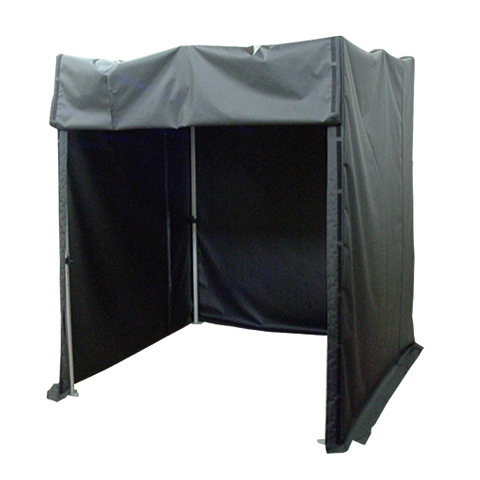

Extend all the poles (Required time: 2 minutes) |
Specification
| Size | B-LP1／B-LP2 *We do not accept a special order as for a folding darkroom. |
|---|---|
| Type | Cross type / Hook-and-loop fastener type |
| Frame | Aluminum square pipe with alumite treatment |
| Blackout curtain |
SCIENTEX's standard type >>More detail |

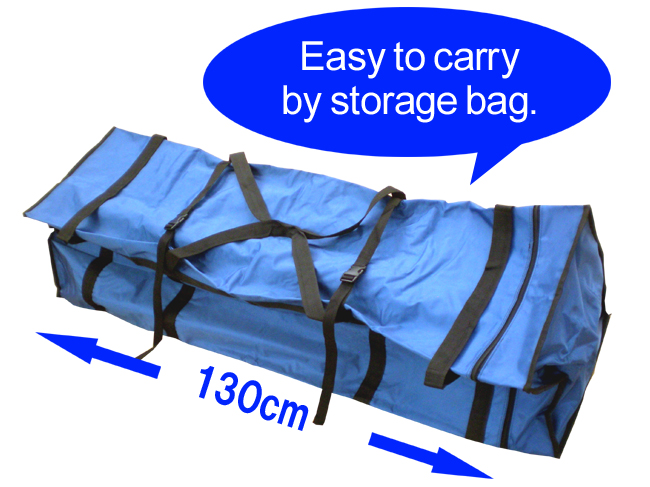

| Component | Frame, Blackout curtain, Storage bag, Hooks（Only cross type） |
| About package (e.g. B-LP2) |
Package size: 1400×300×300mm Weight: About 23.5kg Carton：1 |
Model
| Model | Width(mm) | Depth(mm) | Height(mm) | Weight |
|---|---|---|---|---|
| B-LP1 (Hook-and-loop fastener type)/ B-LP1-X (Cross type) |
1200 | 1200 | 2080 | 18kg |
| B-LP2 (Hook-and-loop fastener type)/ B-LP2-X (Cross type) |
1800 | 1800 | 2080 | 23kg |
Price
| Model | Price* |
|---|---|
| B-LP1 (Hook-and-loop fastener type)/ B-LP1-X (Cross type) |
190,000 yen |
| B-LP2 (Hook-and-loop fastener type)/ B-LP2-X (Cross type) |
239,000 yen |
*There will be a surcharge for deliveries.
Caution
*We do not accept a special order as for a folding darkroom.
*Laser safety standard of blackout curtain: Laser output within 20-30mW.
* Please assemble a darkroom by yourself.
*This darkroom cannot be used as a clean room.
*Please check bolts and screws regularly whether they don’t slack. If you find a slack, tighten it by hex wrench.
*The specification of our products may be changed without notice due to technical reasons.
